Removing and installing rear brake control cable - AR42.20-P-0525GH

MODEL 163

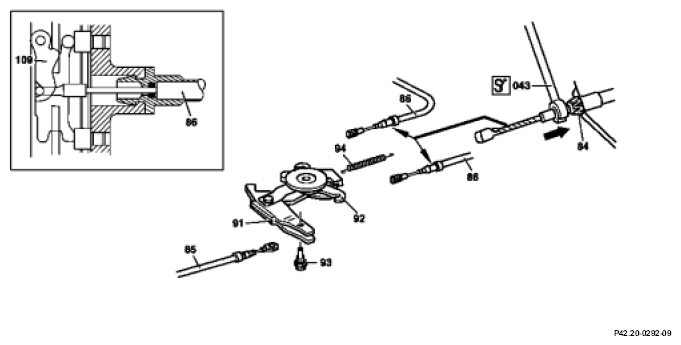

Fig 1: Identifying Rear Brake Control Cable Components

	Removing, installing
1	Remove and install parking brake shoes.		AR42.20-P-0530GH
2	Unhook brake cables (86) from compensating lever (92).
3	Unhook brake cables (86) from frame floor.	Use unclipping device (043).	Figure
4	Remove brake cable (86) from wheel carrier.		AR42.20-P-0525-03GH
5	Install in reverse order.

Fig 2: Identifying Unclipping Device (129 589 11 63 00)
