Bleed brake system. - AR42.10-P-0010GH

MODEL 163.113 /128 /136 /154 /157 /172 /174 /175

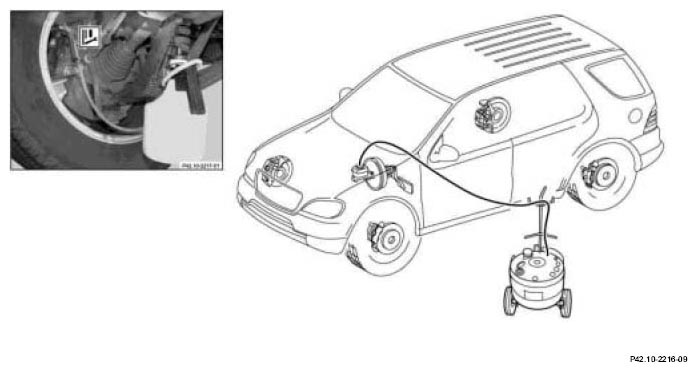

Fig 1: Identifying Bleed Brake System

Shown on vehicle with floating caliper

	Remove/Install
	Risk of poisoning  from swallowing brake fluid. Risk of injury  from brake fluid coming into contact with skin and eyes.	Pour brake fluid only into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Risk of accident  when the vehicle is first operated following repair work due to inadequate braking effect the first time the service brake is applied.	Before starting engine, actuate brake pedal several times until the pressure is built up and maintained in the brake system.	AS42.50-Z-0002-01A
	Brake fluid notes	All models	AH42.50-P-0001-01A
	Notes on externally invisible brake fluid loss	Models 129, 140, 163, 168, 170, 202, 203, 208, 209, 210, 215, 220, 414, 460, 461, 463.200 /204 /206 /207 /208 /209 /220 /221 /224 /225 /227 /228 /230 /231 /232 /233 /240 /241 /244 /245 /247 /248 /249 /250 /254 /300 /304 /307 /308 /309 /320 /321 /322 /323 /324 /325 /327 /328/330/331 /332/333	AH42.10-P-9406-02A
	Notes on repairs to brake system	All models	AH42.00-P-0003-01A
1	Connect filling and bleeding device	Pay attention to manufacturer's operating instructions. Bleeding pressure 2 bar.	*WE58.40-Z-1001-07A
			*BF42.10-P-1001-01A
2	Carrying out bleeding operation	To assist the bleeding operation, press the brake pedal for high-pressure bleeding.	AR42.10-P-0010-02I
		A commercially available box wrench should be used for floating brake calipers and fixed brake calipers.
		Floating brake caliper: Front axle bleed screw: ↓
			*BA42.10-P-1002-03A
		Floating brake caliper: Rear axle bleed screw: ↓	*BA42.10-P-1001-17A
		Fixed brake caliper: Front axle bleed screw: ↓	*BA42.10-P-1002-02A
		Fixed brake caliper: Rear axle bleed screw: ↓	*BA42.10-P-1002-01A
		Brake bleeding wrench WAF 8	*WH58.30-Z-1008-11A
		Brake bleeding wrench WAF 10	*WH58.30-Z-1009-11A
3	Disconnect filling and bleeding equipment, check brake fluid level and correct if necessary		*BF42.10-P-1001-01A

Front axle fixed caliper

Number	Designation		Model 163.113 as of VIN A289565, X754620 163.154 as of VIN A289565 except	Model 163.128/ 172/174/ 175	Model 163.128/ except
BA42.10-P-1002-02A	Bleeder screw at fixed caliper of front axle	NM	18	18	18

Front axle floating caliper

Number	Designation		Model Series 163.136	Model 163.154/157
BA42.10-P-1002-03A	Bleed screw on front axle floating caliper	NM	18	18

Front axle floating caliper

Number	Designation		Model 163.113 to VIN A289564, X754619 163.154 to VIN A289564 except
BA42.10-P-1002-03A	Bleed screw on front axle floating caliper	NM	18

Rear axle floating caliper

Number	Designation		Model Series 163.136	Model 163.154/157	Model 163.113 to VIN A289564, X754619 163.154 to VIN A289564
BA42.10-P-1001-17A	Bleed screw on rear axle floating caliper	NM	18	18	18

Fixed caliper at rear

Brake fluid
