Apply brake pad paste to brake pads - AR42.10-P-0161-01GH
Model 163.113/128 /154 /157 /172 /174 /175 with fixed brake caliper
Workshop equipment
| WE58.40-Z-1003-13A | Brake cleaning unit |
Repair materials
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1057-06A | Molykote Cu-7439 brake pad paste | A 001 989 87 51 |

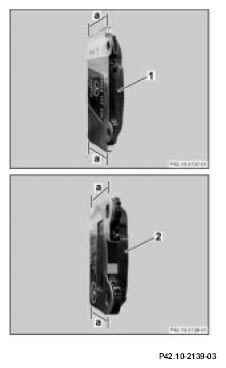

- Clean edges (a) of brake pad base plate (1, 2) with a rag soaked in solvent.
- Clean application points of brake pad in brake caliper with a rag soaked in solvent.
- Apply 1 to 2 mm of Molykote Cu-7439 brake pad paste to the edges (a) of the brake pad base plate.
Only apply brake pad paste to the edges (1). Brake pad paste must not touch the friction surface or any other parts other than those mentioned above. Remove excess brake pad paste immediately from front or back of brake pad.
