Hydraulic unit ESP test electrics ESP - AD42.45-P-6000-17B

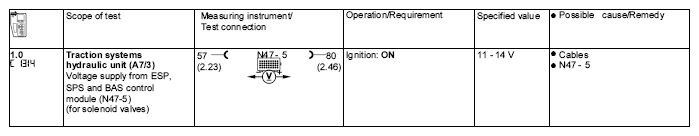

Fig 1: Hydraulic Unit ESP Test Electrics ESP

G04607367
