Home >> Mercedes Benz >> 2001 >> ML320 >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Brakes -- 163 Chassis >> Basic Knowledge >> Electronic traction system (ETS), location of electrical/electronic components - GF42.35-P-0001-07A

Electronic traction system (ETS), location of electrical/electronic components - GF42.35-P-0001-07A

Model 163

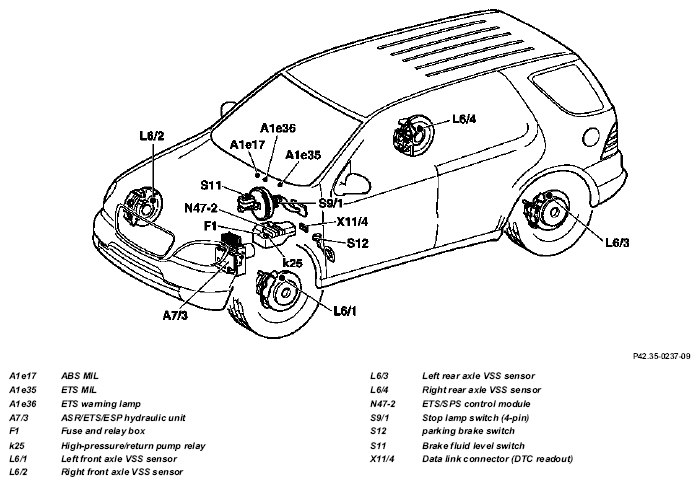

Fig 1: Identifying ETS Electrical/Electronic Components Locations

G04607236
