Electronic stability program (ESP), location of electronic components - GF42.45-P-0001-03H

Model 163 up to 08/02

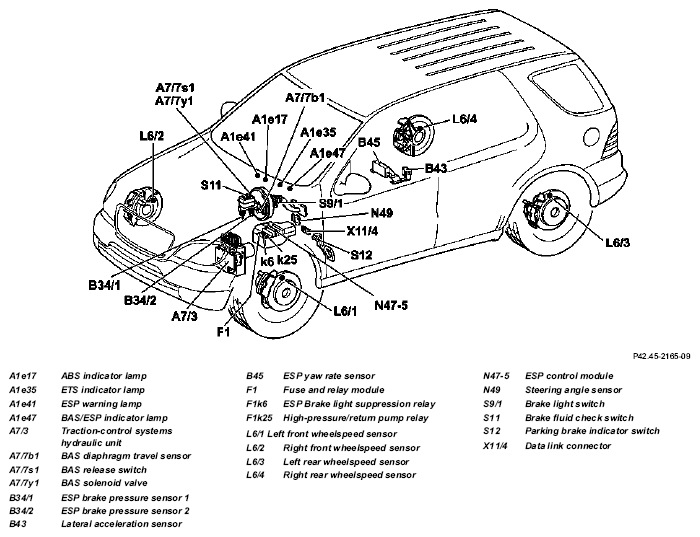

Fig 1: Identifying Electronic Components Location

G04607258
