Notes on TV antenna in rear window - AH82.62-P-0001-01A
Model 210.0 as of 1.7.99
The model 210 sedans with COMAND have been equipped with antenna leads on the rear window required for the TV tuner as of the middle of October 1999.
Vehicles produced up to the time must be checked for presence of these connection leads!

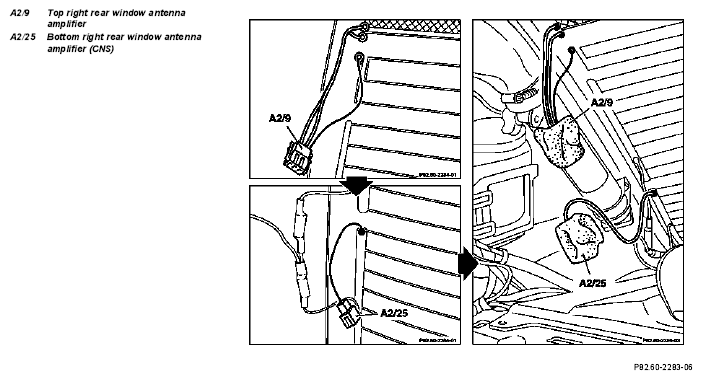

For this purpose remove C-pillar paneling on right and check whether rear window connection leads for the top right rear window antenna amplifier (A2/29) and the bottom right rear window antenna amplifier (A2/25) are present.
The connection leads are tied back on or below the right gas generator with adhesive felt.
On vehicles on which the connection leads are not present, it is necessary to install a new
rear window before installing the TV system!
Order rear window according to vehicle equipment. Coordinate costs resulting with customer in advance.
