Removing and installing torsion bar on front axle - AR32.20-P-0300FB
MODEL 210.07 with CODE (979) Special protection version with CODE (Z04) Light armoring with CODE (Z06) B6 armoring
| Removal, installation | |||
| Replace self-locking bolts and nuts | |||

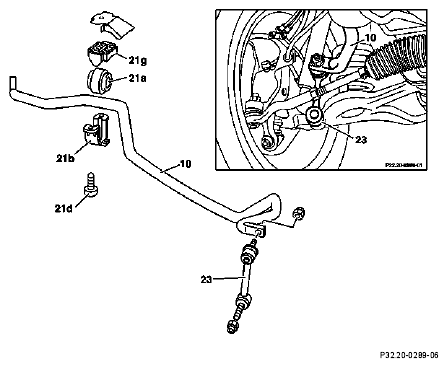

| 1 | Screw nuts (arrow) off of connecting rod (23). | *BA32.20-P-1003-02D | |
| *BA32.20-P-1004-02D | |||
| 2 | Remove connecting rod (23) from torsion bar (10). | ||
| 3 | Remove mounting shackle (21b) with form element (21g) and guard plate. | *BA32.20-P-1001-02D | |
| 4 | Remove torsion bar (10). | Center torsion bar (10) |
|
| 5 | Reinstall in opposite order. |
| Number | Designation | Model 210.07 with code Z04, Z06 | |
|---|---|---|---|
| BA32.20-P-1001-02D | Self-locking bolt for torsion bar on frame | Nm | 20 |
| BA32.20-P-1003-02D | Nut for torsion bar connection rod to wishbone | Nm | 120 |
| BA32.20-P-1004-02D | Nut for torsion bar connecting rod to torsion bar | Nm | 120 |
