Removing and installing front shock absorber - AR32.25-P-0105FB

MODEL 210.07 with CODE (979) Special protection version with CODE (Z04) Light armoring with CODE (Z06) B6 armoring

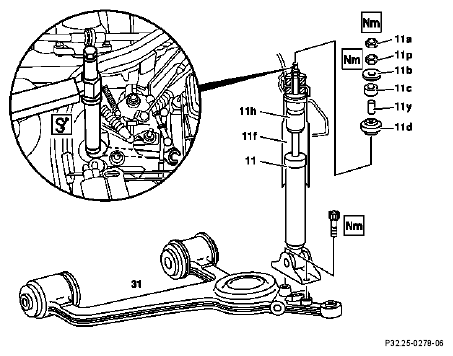

Fig 1: Identifying Front Shock Absorber Components (Model 210.07)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
	The vehicle must be lowered with weight on the tires to remove the upper shock absorber mount.
1	Remove upper shock absorber mount.		Figure
		Nut (11p)	*BA32.25-P-1001-01B
		Nut (11a)	*BA32.25-P-1002-01B
2	Remove plate (11b) and rubber mount (11c).
3	Lift vehicle.
4	Detach shock absorber (11) from wishbone (31) and remove downward.	Installation: Replace screws.
			*BA32.25-P-1005-01B
5	Remove mounting parts (11y, 11d, 11f, 11h) for shock absorber (11).	Check mounting parts (11d, 11f, 11h) for damage and cracks.
6	Check shock absorber.		AR32.25-P-0121A
7	Reinstall in opposite order.

Shock absorber on front axle

Number	Designation		Model 210.07 with code Z04, Z06
BA32.25-P-1001-01B	Nut for shock absorber on front end	Nm	18
BA32.25-P-1002-01B	Counter-nut for shock absorber on front end	Nm	30
BA32.25-P-1005-01B	Bolt for shock absorber on wishbone	Nm	20

Fig 2: Identifying Socket Wrench (202 589 00 09 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
