Remove, install torsion bar at front axle - AR32.20-P-0300D

MODEL 210

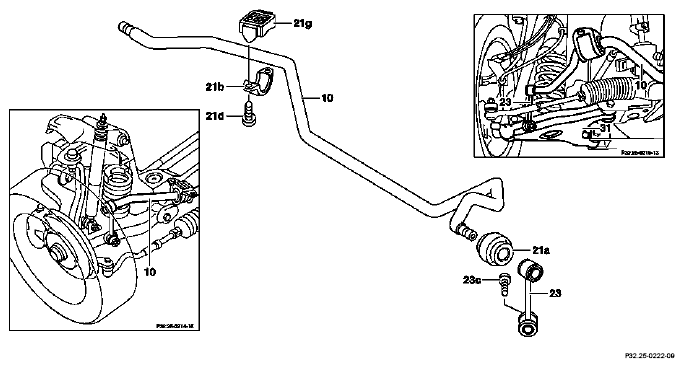

Fig 1: Identifying Torsion Bar At Front Axle Components (Model 210)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Replace self-locking bolts.
1	Unscrew bolts (23c).		*BA32.20-P-1002-02D
2	Detach bracket (21b) with molded part (21 g).	Bolt (21d)	*BA32.20-P-1001-02D
3	Remove torsion bar (10).	Installation:  Center the torsion bar (10).
4	Remove connecting rod (23) (rubber mount) from torsion bar (10).
5	Pull rubber mounts (21a) off torsion bar (10).
		Installation:  grease inner side of rubber mount (21a) with lubricant.	*BR00.45-Z-1002-06A
6	Reverse the removal sequence to install.

Front axle torsion bar

Number	Designation		Model 210 without level control / ADS CODE 217a except model 210.07 with code Z04, Z06 except model 210.08/28	Model 210 with level control / ADS CODE 217a except model 210.07 with code Z04, Z06 except model 210.08/28
BA32.20-P-1001-02D	Self-locking bolt, torsion bar to frame	Nm	20	20
BA32.20-P-1002-02D	Self-locking bolt, torsion bar connecting rod to wishbone	Nm	80	80

Repair materials

Number	Designation	Order number
BR00.45-Z-1002-06A	Lubricant	A 000 989 01 60
