Pressure oil pump connecting diagram, testing hydraulics, ADS II - AD32.32-P-2000-06B

Model 140

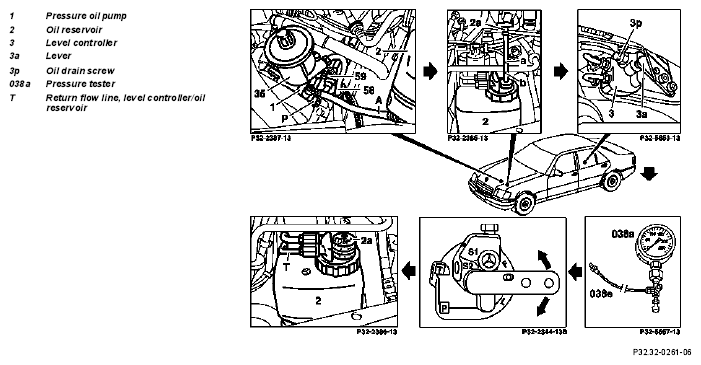

Fig 1: Pressure Oil Pump Connecting Diagram, Testing Hydraulics, ADS II (Model 140)
G04624653Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 210

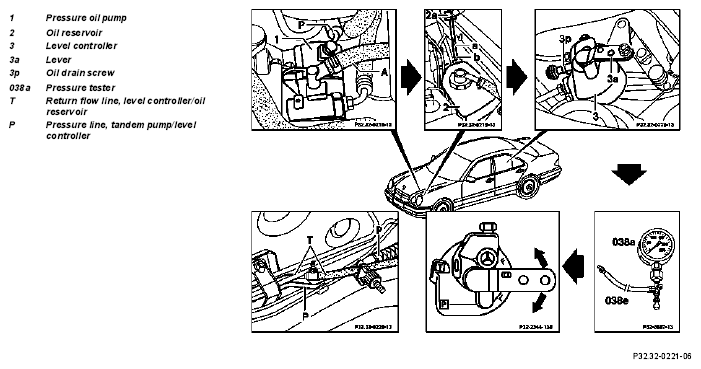

Fig 2: Pressure Oil Pump Connecting Diagram, Testing Hydraulics, ADS II (Model 210)
G04624654Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
