Adaptive damping system (ADS II) test of electrical system right rear axle damping valve - AD32.32-P-6000-10B

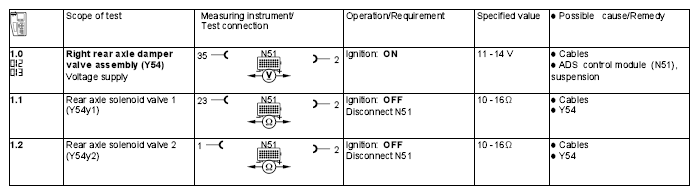

Fig 1: Adaptive Damping System (ADS II) Test Of Electrical System Right Rear Axle Damping Valve
G04624666Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
