Adaptive damping system (ADS II) test of electrical system left rear axle damping valve - AD32.32-P-6000-09B

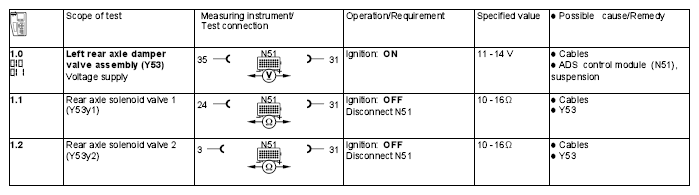

Fig 1: Adaptive Damping System (ADS II) Test Of Electrical System Left Rear Axle Damping Valve
G04624665Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
