Adaptive damping system (ADS II) socket box connection diagram - AD32.32-P-2000-04B

Model 140 with module box

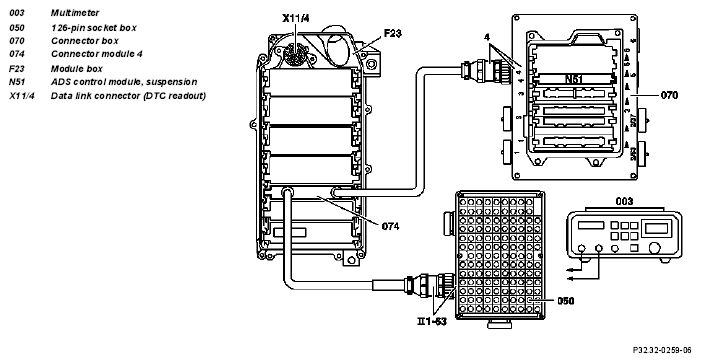

Fig 1: Adaptive Damping System (ADS II) Socket Box Connection Diagram (Model 140 With Module Box)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 140 with control module box

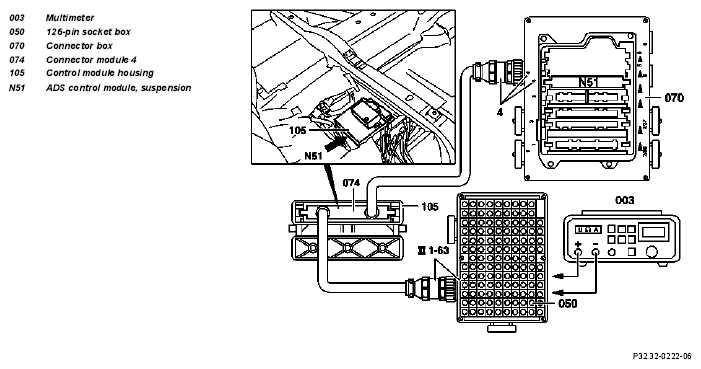

Fig 2: Adaptive Damping System (ADS II) Socket Box Connection Diagram (Model 140 With Control Module Box)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 210

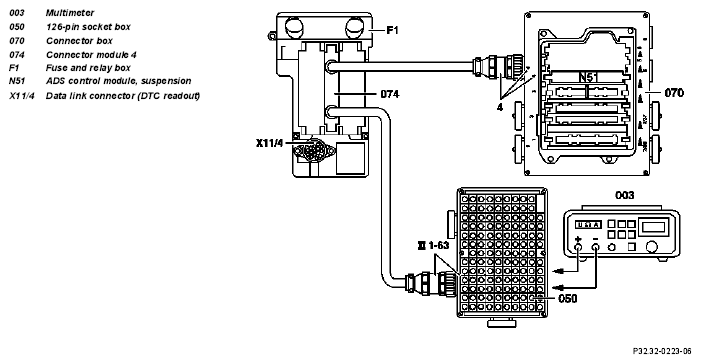

Fig 3: Adaptive Damping System (ADS II) Socket Box Connection Diagram (Model 210)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
