Adaptive damping system (ADS II) assignment at control module connector - AD32.32-P-2000-05B

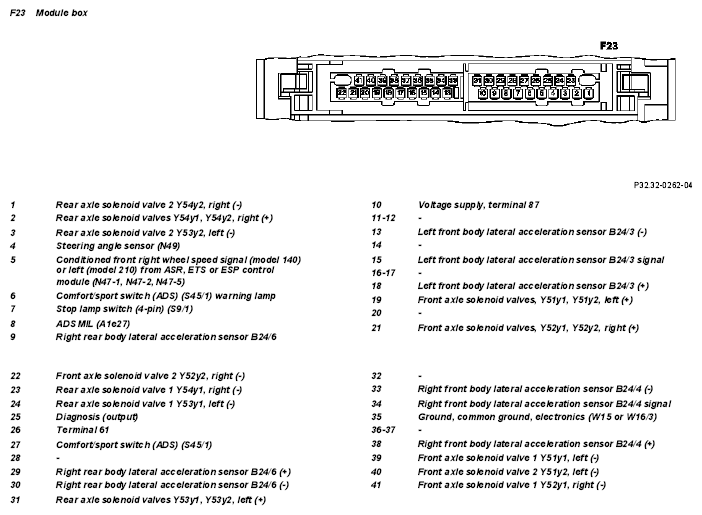

Fig 1: Identifying Adaptive Damping System (ADS II) Assignment At Control Module Connector
G04624652Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
