Adaptive damping system (ADS II), location of components - GF32.32-P-0001-01B

Hydraulics

Hydraulic components Model 140

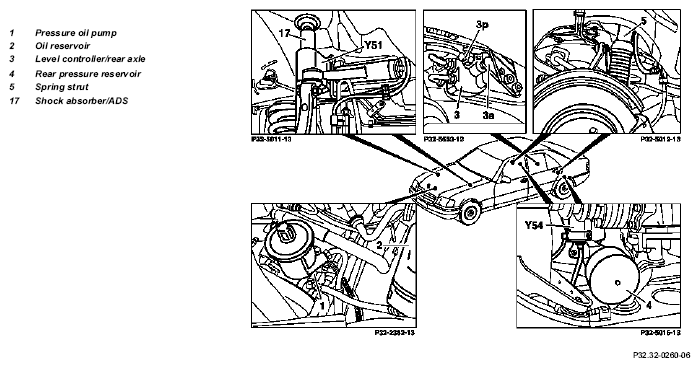

Fig 1: Identifying Hydraulic Components (Model 140)
G04624635Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Hydraulic components Model 210

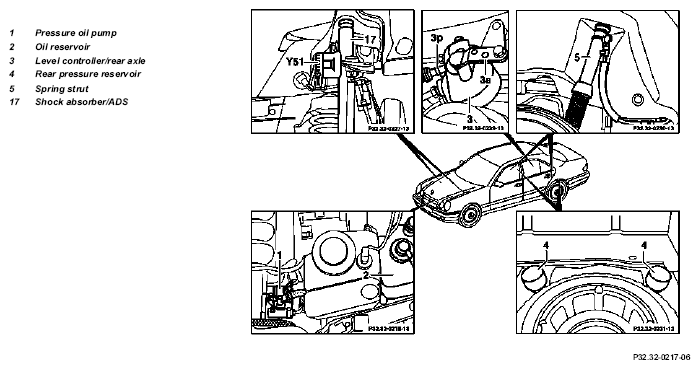

Fig 2: Identifying Hydraulic Components (Model 210)
G04624636Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
