Adaptive damping system (ADS II), location of components - GF32.32-P-0001-01A

Electrical system

Electrical components in passenger compartment

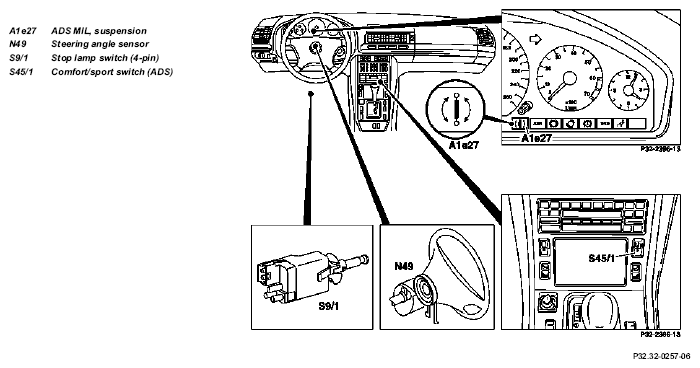

Fig 1: Identifying Adaptive Damping System (ADS II) Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Electrical components in engine compartment and on chassis Model 140

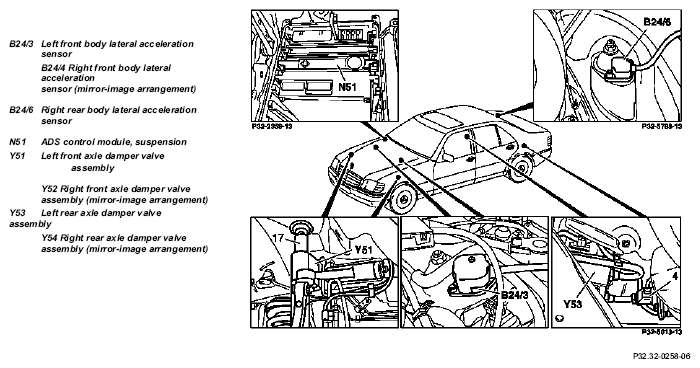

Fig 2: Identifying Electrical Components In Engine Compartment And On Chassis (Model 140)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Electrical components in engine compartment and on chassis Model 210

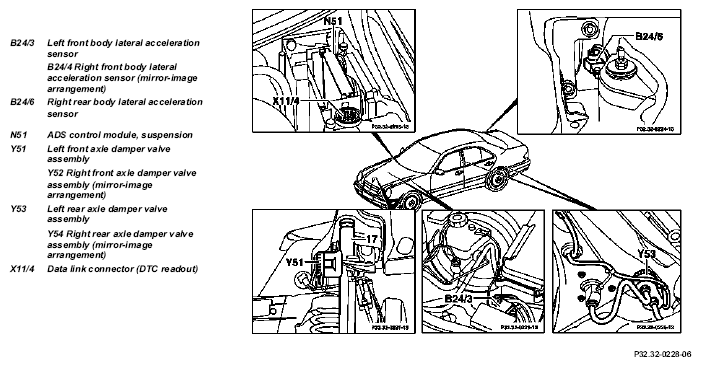

Fig 3: Identifying Electrical Components In Engine Compartment And On Chassis (Model 210)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
