Removing and installing seat occupied recognition sensor - AR91.60-P-0720A

MODELS 210, 463 up to 30.11.00 with seat occupied recognition sensor

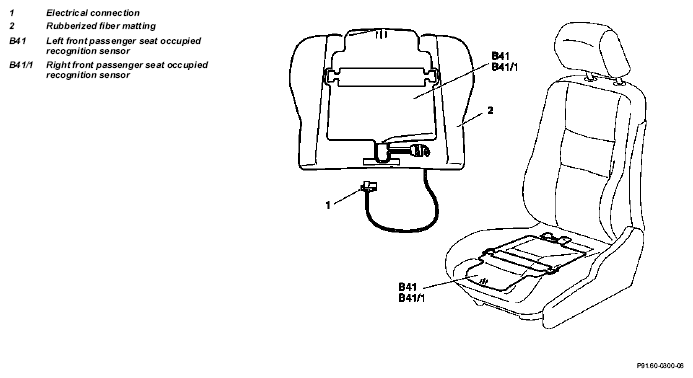

Fig 1: Identifying Seat Occupied Recognition Sensor Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing, installing
	Important instructions for performing repair, body work and welding on vehicles with airbags and emergency tensioning retractors	Models 129 as of 1.7.93, 163, 168, 170, 202 as of 1.7.93, 208, 210, 463, 638, 901, 902, 903, 904	AH91.00-P-0002-01B
1	Remove cover of front seat cushion	Model 210	AR91.18-P-1800F
		Model 463	AR91.18-P-1800A
2	Withdraw ignition key
3	Unclip electrical connector (1) of seat occupied recognition sensor at connecting strip of seat
4	Detach connector lead from the seat and feed upwards out of the rubberized fiber matting (2)
5	Remove seat occupied recognition sensor (B41 or B41/1) from the rubberized fiber matting (2)	Installation:  lay out seat occupied recognition sensor (B41 or B41/1) evenly on the rubberized fiber matting (2). The woven side must face upwards. Do not bend the seat occupied recognition sensor(B41 or. B41/1).
6	Install in the reverse order
