Removing and installing front seats - AR91.10-P-1000F

MODEL 210

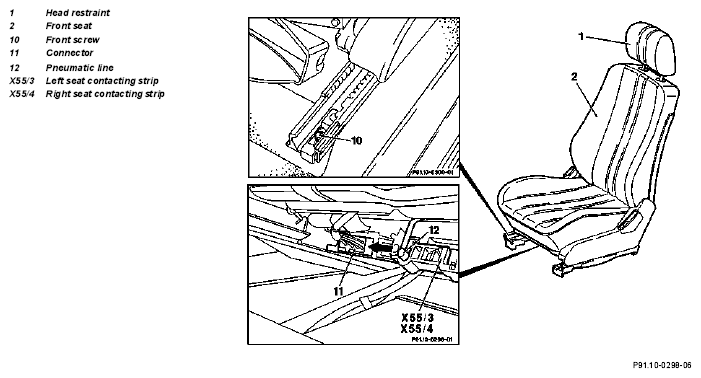

Fig 1: Identifying Front Seat Components -Model 210 (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

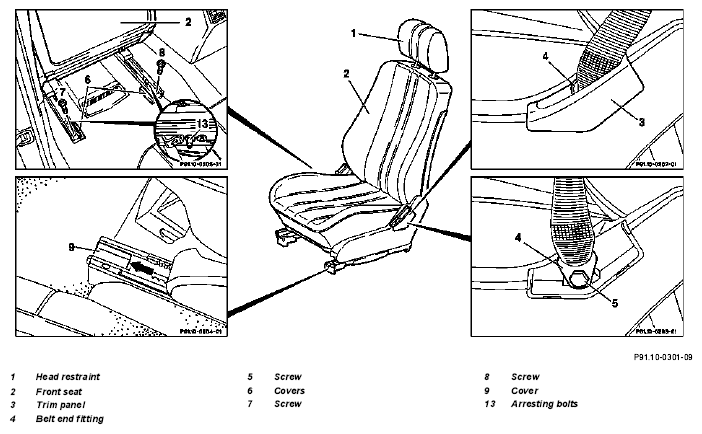

Fig 2: Identifying Front Seat Components -Model 210 (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Remove head restraint (1)
2	Move front seat (2) toward front
3	Pull off cover (3) on belt end fitting (4)
4	Unscrew screw (5, a/f 17) on belt end fitting	When installing, screw on belt end fitting so that it can move.	*BA91.40-P-1001-01A
5	Pull off cover (6) on rear seat rails
6	Unscrew screws (7 and 8) on rear seat rails	Use E12 external Torx socket wrench attachment.	*BA91.10-P-1001-01A
			Fig 3
N	Move front seat (2) toward rear
8	Remove fire extinguisher from holder
9	Pull off 2 covers (9) on front seat rails
10	Unscrew 2 screws (10), on front seat rails	Use E12 external Torx socket wrench attachment.	*BA91.10-P-1001-01A
			Fig 3
11	Disconnect connector (11) and pneumatic line (12) from front seat cushion frame on contacting strip (X55/3)
12	Lift and remove front seat (2)	When installing insert arresting bolts (13) into mounting hole in rear consoles.
13	Install in opposite order

Front seats

Number	Designation		Model 210
BA91.10-P-1001-01A	Screw on seat rail	Nm	50

Seatbelts/emergency tensioning retractors

Number	Designation		Model 210
BA91.40-P-1001-01A	Screw on belt end fitting	Nm	35

Fig 3: Identifying TORX Bit Set (000 589 01 10 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
