Installing cover and seat cushion heater element in backrest - AR91.30-P-0004-02A

  1. Install new cover on rubberized fiber matting, align and hook in.
  2. Connect connectors (1).

    IMPORTANT Not present on Classic version.

  3. Position connectors (1) between rubberized fiber matting and frame and fasten to spring with cable strap.

    NOTES Avoid pressure points.

  4. Route wire with connector (2) along seat belt buckle wiring harness.

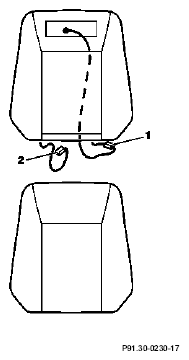

    Fig 1: Identifying Cover And Seat Cushion Heater Element In Backrest
    G04632968Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
