Retrofitting door wiring harness - AN91.60-P-0001-02A

If door wiring harnesses (4) are not already installed untie wiring harnesses for left and right front doors from complete wiring harnesses specified in ET KG 99.

1. Route door wiring harness (4) according to drawing and fasten with clips present (arrow). Connect connector (X35/1) or (X35/2).

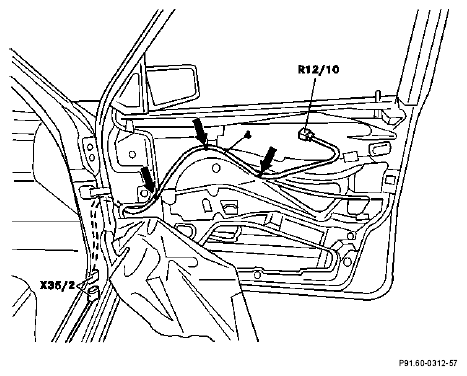

   Fig 1: Locating Retrofitting Door Wiring Harness

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
2. Cut through door foil (arrow) and glue on.

   Position side airbag connector correctly.

   Fig 2: Locating Position Side Airbag Connector Correctly

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
