Converting frame-floor system wiring harness - AN91.60-P-0001-01A

Fig 1: Identifying Release Tool (202 589 03 33 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

1. Expose old airbag wiring harness in frame/floor wiring duct and remove starting at control module (N2/2).

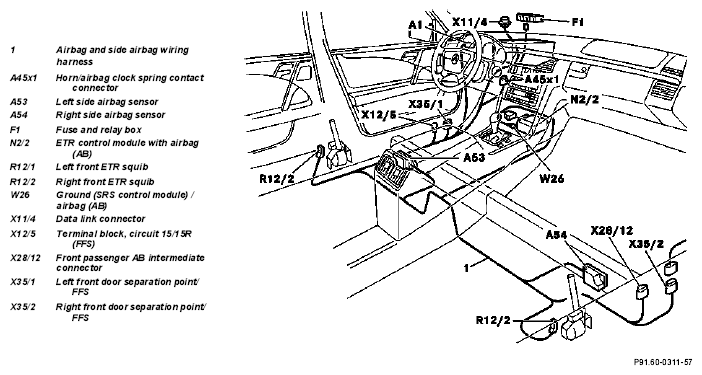

   Fig 2: Identifying Left Side Air Bag Sensor, Left Front ETR Squib And Data Link Connector

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
2. Install and connect new airbag wiring harness (1) according to drawing starting at control module (N2/2).
3. Route new airbag wiring harness (1) to fuse box.
4. Connect power supply lead (2) to fuse connector (F1/2) location 13E.



5. Insert test lead (3) into data link connector (X11/4) socket 30.

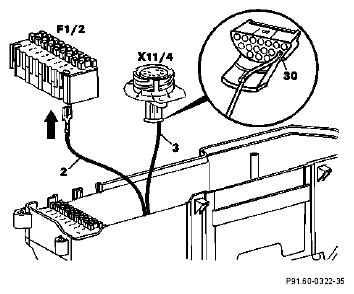

   Fig 3: Identifying Airbag Wiring Harness, Fuse Box And Data Link Connector

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
