Stamping opening in trim of rear roof frame - AN68.30-P-4470-01FA

  1. Stamping opening for the seat-belt guide bracket fastening in trim of roof frame.

    IMPORTANT The opening's position is imprinted on the reverse side of the trim.

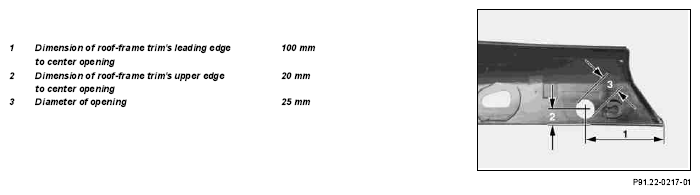

    Fig 1: Identifying Rear Roof Frame Dimensions
    G04632641Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
