Installing trunk lid auxiliary lock - AN88.50-P-0001-01A

  1. Close rotary catch on lock (1).
  2. Assemble lock cylinder (2) and lock (1) ensuring that driver (3) engages in guide (4).
  3. Attach yellow pneumatic line to trunk lid CL actuator.
  4. Connect 3-pin connector for trunk lid lock switch.

    IMPORTANTUSA ONLYJAPAN ONLY only.

    Fig 1: Identifying Lock Cylinder, Lock, Driver And Guide
    G04634994Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  5. Install trunk lid lock (5) in trunk lid.
  6. Start screws (6), however, do not yet tighten.
    Fig 2: Identifying Trunk Lid Lock And Screws
    G04634995Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  7. Insert connecting rods (7, 8) into driver (9) on lock cylinder (1).
  8. Install cover (10) in trunk lid and slide onto lock cylinder (1).

    IMPORTANT Clip (12) should catch audibly in recess (c) in cover (10).

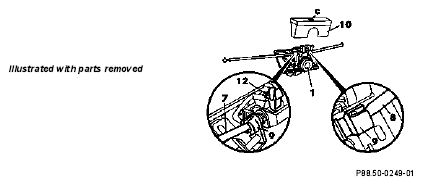

    Fig 3: Identifying Cover, Lock Cylinder, Connecting Rods And Clips
    G04634996Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  9. Press trunk lid lock (5) toward rear against lock cylinder rubber seal and tighten screws (6).
    Fig 4: Identifying Trunk Lid Lock And Screws
    G04634997Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  10. Install cover (13, 14) in trunk lid and slide over connecting rods (7, 8).
  11. Hold covers (13, 14) with one plastic clip each (15) mounted on outside.
    Fig 5: Identifying Cover, Connecting Rods And Plastic Clip
    G04634998Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  12. Install catches (16, 17) in trunk lid inserting connecting rods (7, 8) into drivers (18, 19).

    IMPORTANT Ensure that catches (16, 17) are installed in correct engagement direction.

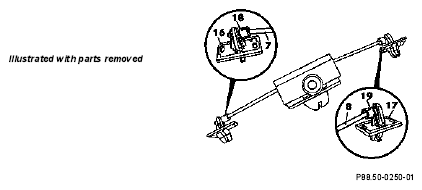

    Fig 6: Identifying Catches, Connecting Rods And Drivers
    G04634999Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  13. Tighten catches (16, 17) with screws (20).
    Fig 7: Identifying Catches And Screws
    G04635000Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  14. Install cage nuts (21) on rear center element.
    Fig 8: Identifying Cage Nuts
    G04635001Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  15. Install strikers (22, 23) in rear center element.
  16. Start screws (24), however, only tighten to the point that the strikers (22, 23) can still be moved.
    Fig 9: Identifying Screws And Strikers
    G04635002Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  17. Press button on trunk lid lock; all three catches should move from the locked to the unlocked position.
  18. Close rotary catch on lock again; both auxiliary catches should also move to the locked position simultaneously.
  19. Press button on trunk lid lock, all three catches should again move from the locked to the unlocked position.
    Fig 10: Identifying Catch In Locked/Unlocked Position
    G04635003Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  20. Close trunk lid.

    IMPORTANT This centers the strikers.

  21. Open trunk lid.
  22. Tighten screws (24).
    Fig 11: Identifying Screws And Strikers
    G04635004Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  23. Check retaining lugs on catches (16, 17).

    IMPORTANT The retaining lugs on the catches (16, 17) should be approx. 2-3 mm from the strikers (22, 23) with the trunk lid closed.

    Check visually if necessary.

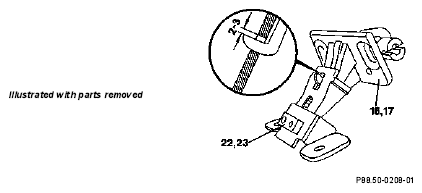

    Fig 12: Identifying Catches And Strikers
    G04635005Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
