Finishing trunk lid trim cutouts to size - AN88.50-P-0001-02A

Workshop equipment

WE58.40-Z-1010-03A Compressed air high-performance keyhole saw
  1. Make cutouts for lock eyes (shaded areas) on trunk lid trim and cut out with compressed air high performance keyhole saw.

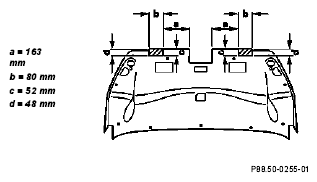

    Fig 1: Identifying Finishing Trunk Lid Trim Cutouts To Size
    G04635006Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
