Fabricating pennant holder drilling template - AN88.10-P-0001-01F

Model 210 as of 1.6.99

If possible the template should consist of cardboard or similar material so that it is flexible.

It should be fabricated for one side and can be used for the other side with locations reversed.

1. Fabricate template according to drawing.

   Mark arrow for indicating front of vehicle and mark L or R for left/right side on template.

2. Cut 6 mm dia. hole (g).
3. Cut 2 mm dia. hole (h).

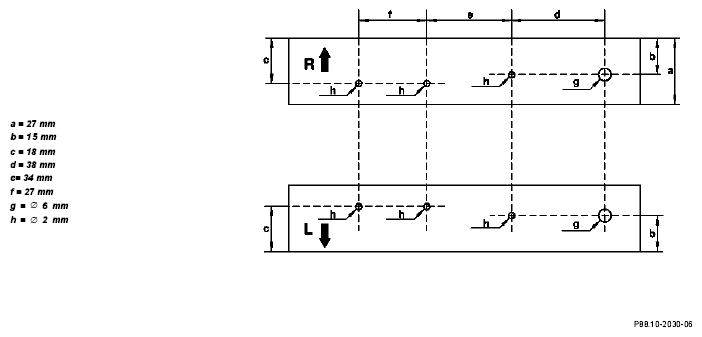

   Fig 1: Identifying Fabricating Pennant Holder Drilling Template

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
