Remove/install lamp unit - AR82.10-P-4730F
MODEL 210.0 /2 as of 1.6.99
| Remove/install | |||
| Risk of death caused by touching parts which conduct high voltages | Do not come into contact with parts that are under high voltage. Persons who have electronic implants (e.g. pacemakers) must not perform any work on the ignition system. | AS15.10-Z-0001-01A | |
| Risk of death
caused by high voltage levels present at xenon headlamps. Risk of explosion/fire hazard through highly flammable material in the area of damaged xenon bulbs. Risk of injury through UV light, hot components on xenon headlamps and glass splinters when xenon bulbs burst. Risk of poisoning through inhalation of mercury vapor and swallowing of or skin contact with toxic salts and mercury compounds. |
Do not come into contact with parts that are under high voltage. Persons with active electronic implants (e.g. heart pacemakers) must never work on xenon headlamps. Switch off complete lighting system. Wear insulating safety shoes, safety glasses and protective gloves. Remove highly inflammable materials from the hazard area. Ensure that the workplace is sufficiently ventilated. | AS82.10-Z-0001-01A | |
| 1 | Open engine hood | ||
| 2 | Remove front bumper | AR88.20-P-2000FA | |

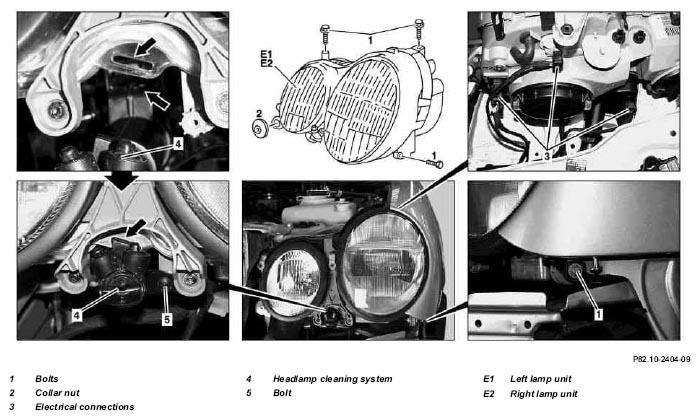

| 3.1 | Remove headlamp cleaning system (4) on lamp unit (E1 or E2) | With headlamp cleaning system (code 600a) |
|
| 4 | Remove bolts (1) | ||
| 5 | Unscrew collar nut (2) | ||
| 6 | Pull lamp unit (E1 or E2) carefully forward | ||
| 7 | Detach electrical connections (3) from lamp unit (E1 or E2) | ||
| 8 | Install in the reverse order | ||
| 9 | Check headlamp adjustment and if necessary correct | ||
| AP82.10-P-8260A | |||
| 10 | Perform functional check of headlamp cleaning system |
