Retrofitting traffic data memory - AN82.61-P-1000-04B

Model 210

On vehicles with navigation processor as standard feature, illustrated on model 210 sedan

1. Remove navigation processor and check whether mounting lugs (arrows) are present on the bottom of the mount (30).
2. If lugs are present install traffic data memory (A2/43) on mount.
   Fig 1: Identifying Traffic Data Memory

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Vehicles without mounting lugs

3. Align traffic data memory (A2/43) on mount (30) as shown in figure, mark hole pattern for mounting arms and drill mounting holes with 5.5 mm dia. bit.
4. Fasten traffic data memory with three commercially available M5x15 screws and matching nuts.
   Fig 2: Identifying Traffic Data Memory

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
5. Install navigation processor without touching screw heads (if necessary modify mount).



   On vehicles with navigation processor retrofitted below rear shelf (sedan) or in compartment below tailgate (T-model) it is necessary to install the traffic data memory next to the navigation processor.

Illustrated on model 210 sedan with retrofitted navigation processor

6. Align traffic data memory (A2/43) next to APS navigation processor (A2/30) as shown in figure. Mark hole pattern for mounting arms, drill 3 mm dia. mounting holes.
7. Fasten traffic data memory (A2/43) with 3 commercially available sheet metal screws.

For model 210 T-model with installation in compartment below tailgate

8. Depending on installation location protect traffic data memory (A2/43) against damage with plastic or sheet metal cover (shop-made).

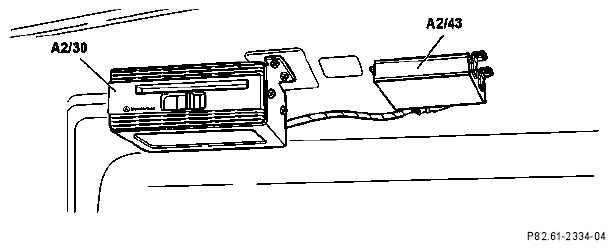

   Fig 3: Identifying Traffic Data Memory And APS Navigation Processor

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
