Retrofitting headlamp range adjustment front axle sensor - AN82.10-P-1000-01FF

Model 210

1. Assemble front axle sensor (A52) and install, as shown in illustration.
2. Plug in 6-pin socket at front axle sensor (A52).

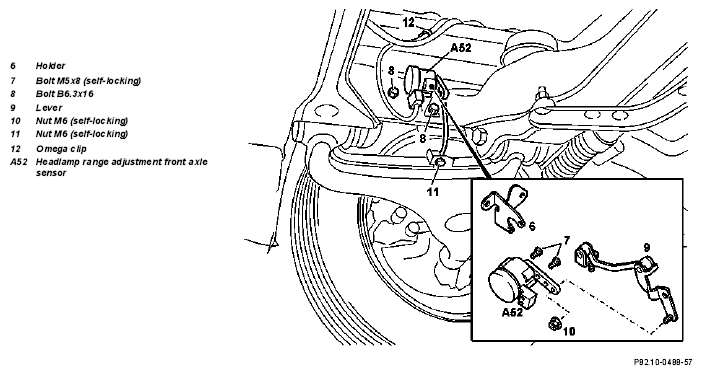

   Fig 1: Identifying Headlamp Range Adjustment Front Axle Sensor Components

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
