Retrofitting fiber optic wiring harness - AN82.70-P-0002-01EE

Model 210.2 as of 1.7.99

1. Prepare fiber optic wiring harness (1) together with blue/black (bl/sw) wake-up signal line as shown in figure.

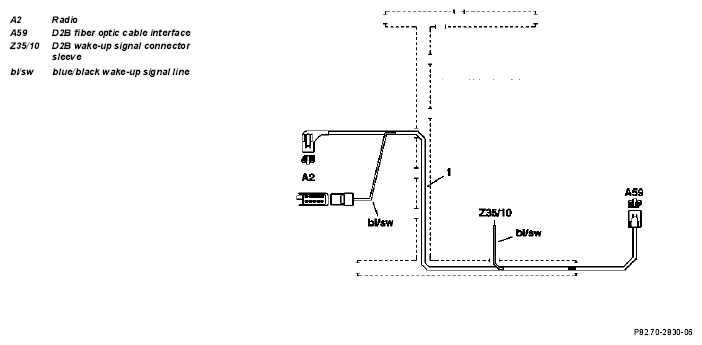

   Fig 1: Fiber Optic Wiring Harness Diagram

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
2. Route wiring harness (1) along existing lines in vehicle as shown in figure.

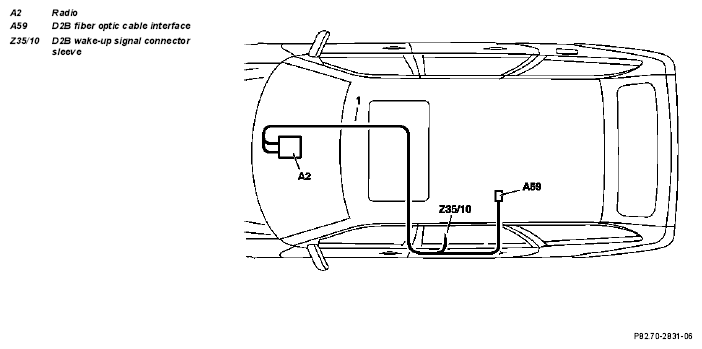

   Fig 2: Identifying Fiber Optic Wiring Harness

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
3. Route tieout from fiber optic wiring harness (1) to radio in radio shaft.

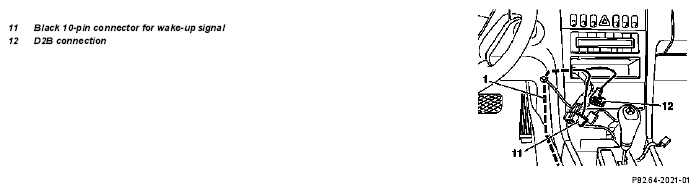

   Fig 3: Identifying Black 10-Pin Connector For Wake-Up Signal And D2B Connection

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
4. Route tieout from radio (A2) into wiring duct below driver's seat as shown in figure and fasten with felt.

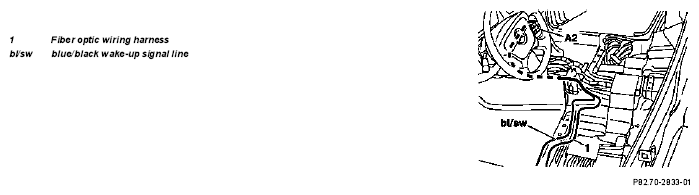

   Fig 4: Identifying Fiber Optic Wiring Harness And Blue/Black Wake-Up Signal Line

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
5. Insert blue/black (bl/sw) lead from wiring harness (1) as wake-up signal connector sleeve (Z35/10) on wiring duct on left B-pillar (will be soldered to telephone wiring harness later).
   Fig 5: Identifying Wiring Harness

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
6. Connect fiber optic wiring harness (1) to D2B fiber optic cable interface (A59) below left rear seat as shown in figure
   Fig 6: Identifying Fiber Optic Wiring Harness

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
