Retrofitting antenna cable and antenna splitter - AN82.62-P-0001-03A

Lay wiring harness for two-way radio roof antenna (1) from two-way radio equipment shaft in trunk according to drawing, connect two-way radio according to manufacturer's specifications if applicable and fasten to present wiring harnesses with cable straps.

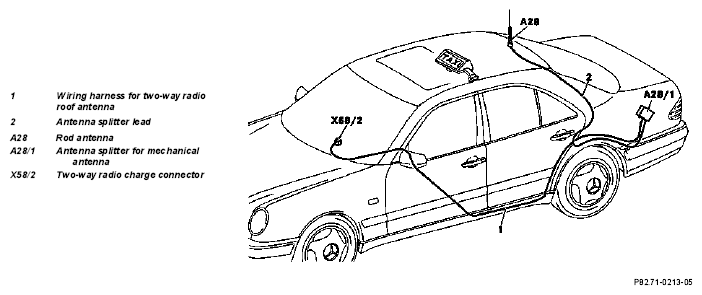

Fig 1: Identifying Retrofitting Antenna Cable And Antenna Splitter
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Drill 3.2 mm dia. holes in left C-pillar according to drawing.
If holes are already present, slide on sheet metal clip nuts.

Fig 2: Identifying Holes In Left C-Pillar
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Screw on antenna splitter (N28/1).
Connect wiring harness for two-way radio roof antenna (1) to antenna splitter (A28/1).

Fig 3: Identifying Wiring Harness For Two-Way Radio Roof Antenna
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Route antenna splitter lead (2) and connect to antenna (A28).
Fasten lead to present wiring harnesses with cable strap.

Fig 4: Identifying Antenna Splitter Lead
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
