Connect wiring harness - AZ82.20-P-0001-02CB

Model 210 model year 2000

Wiring harness connection schematic illuminated door sill molding

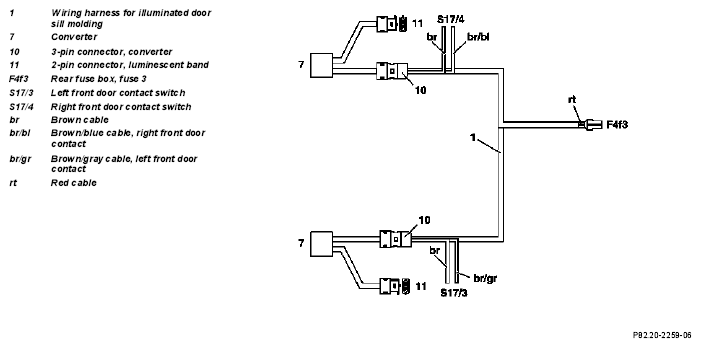

Fig 1: Wiring Harness Connection Schematic Diagram

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Provide red line (red) with corresponding contact spring and insert in free contact cavity of fuse 3 from the rear fuse box (F4).
Route cable harness (1) to right-hand cable duct.
Route long branch-off line of cable harness (1) with brown/gray and brown cables (br/gr, br) for left door contact underneath the rear seat (see broken line) to the base of the left-hand B-pillar and fix in place.
Fix cable harness for illuminated entrance trim panel (1)underneath the rear seat with felt strips in the fold.

Fig 2: Identifying Long Branch-Off Line Of Cable Harness
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Expose and check brown/gray and brown cables (br/gr, br) from standard cable harness from left door contact.
Position the converter (7), 3-pin connector (10) and 2-pin coupling of luminescent band (11) in cable duct on the B-pillar.
Route the 2-pin coupling of the luminescent band (11) out of the cable duct to the front door sill molding, it is connected to the luminescent band later on.

Fig 3: Identifying Converter, 3-Pin Connector And 2-Pin Coupling Of Luminescent Band
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Solder brown/gray and brown cables (br/gr, br) from cable harness (1) to brown/gray and brown cables (br/gr, br) from cable harness of left door contact and insulate (see detail).

Fig 4: Identifying Solder Brown/Gray And Brown Cables (Br/Gr, Br) From Cable Harness
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Route short branch-off line of cable harness (1) with brown/blue and brown cables (br/bl, br) in right-hand cable duct as far as the B-pillar.
Expose and check brown/blue and brown cables (br/bl, br) from standard cable harness from right door contact.
Position the converter (7), 3-pin connector (10) and 2-pin coupling of luminescent band (11) in cable duct on the B-pillar.
Route the 2-pin coupling of the luminescent band (11) out of the cable duct to the front door sill molding, it is connected to the luminescent band later on.

Fig 5: Identifying Converter, 3-Pin Connector And 2-Pin Coupling Of Luminescent Band In Cable Duct On B-Pillar
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Solder brown/blue and brown cables (br/bl, br) from cable harness (1) to brown/blue and brown cables (br/bl, br) from right door contact and insulate (see detail).
