APS connection diagram when retrofitting - AN82.61-P-1000-02D

Model 210

1. The 3rd generation auto-pilot system (APS) must be retrofitted according to this wiring diagram.

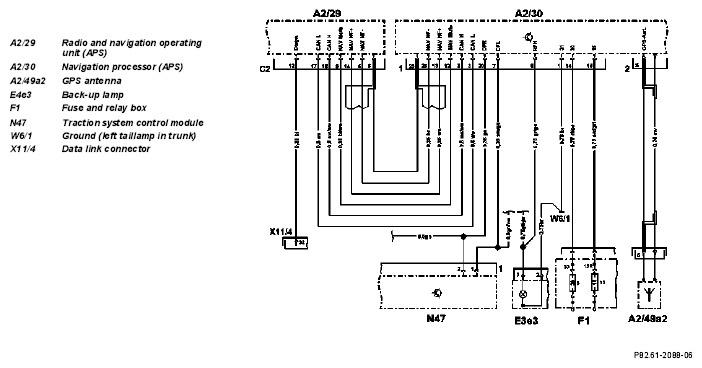

   Fig 1: APS Connection Diagram

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
