Removing and installing switch unit on seat/steering column adjustment - AR91.29-P-0001F
MODEL 210, 208 with CODE (241) Memory circuit for left front power seat with CODE (242a) Memory circuit for right front power seat with CODE (275a) Memory package (driver's seat, steering column, mirror)
| Removal, installation | |||
| 1 | Remove door liner on front door | Model 210 | AR72.10-P-1000F |
| Model 208 | AR72.10-P-1000K | ||
| 2 | Disconnect connector | ||
| 3 | Unclip switch plate from door liner | ||

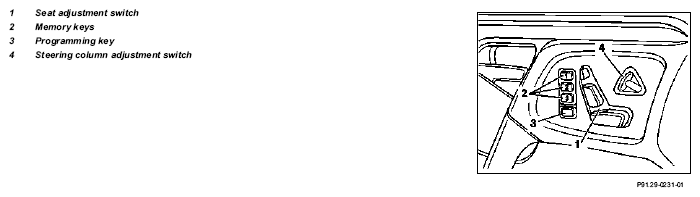

| 4 | Unclip switch unit from switch plate | ||
| 5 | Reinstall in opposite order |
