Removing and installing rear seat belts - AR91.40-P-0681KA

MODEL 208.435 /444 /445 /447 /448 /465 /470

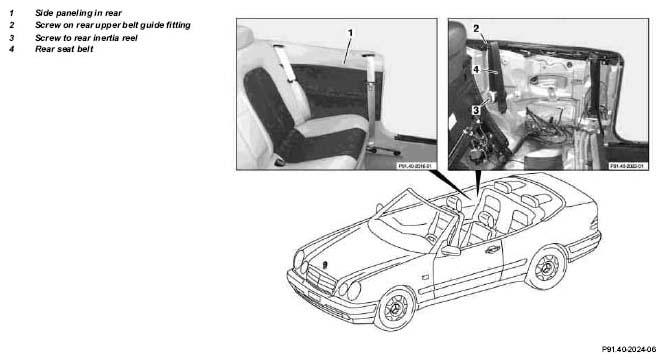

Fig 1: Identifying Rear Seat Belts Remove/Install Components (Model 208.435 /444 /445 /447 /448 /465 /470)

	Removal, installation
	The spring in the inertia reel can pose an injury hazard  when the tension is released and it uncoils.	Never dismantle automatic belt retractors	AS91.00-Z-0002-01A
1	Remove rear side paneling (1)		AR68.30-P-4780KA
2	Unscrew mounting screw (2) from upper belt guide point	Screw on rear upper belt guide fitting	*BA91.40-P-1005-01A
3	Unscrew mounting screw (3) from belt reel	Screw at rear inertia reel	*BA91.40-P-1006-01A
		Screw at belt end fitting	*BA91.40-P-1001-01A
4	Remove rear seat belt (4)	Installation:  Do not install seat belt twisted
5	Install in the reverse order

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 202, 208.3	Model 208.4
BA91.40-P-1001-01A	Belt end fitting screw	Nm	35	35
BA91.40-P-1005-01A	Screw on rear upper belt guide fitting	Nm	30	30
BA91.40-P-1006-01A	Screw to rear inertia reel	Nm	30	30
