Removing and installing rear seat belts - AR91.40-P-0681K

MODEL 208.3 up to 31.5.98

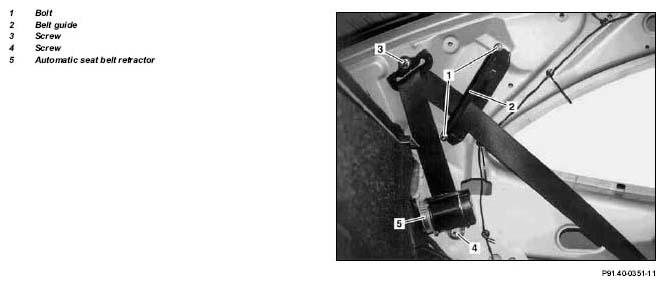

Fig 1: Identifying Rear Seat Belts Remove/Install Components (Model 208.3 Up To 31.5.98)

	Removal, installation
1	Remove side paneling in rear		AR68.30-P-4780K
2	Remove belt guide (2)
3	Unscrew bolt (3) on upper belt guide fitting		*BA91.40-P-1005-01A
4	Unscrew bolt (4) on emergency tensioning retractor (5)	Installation:  Pay attention to arrest automatic seat belt retractor	*BA91.40-P-1006-01A
5	Reinstall in opposite order

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 202, 208.3	Model 208.4	Model 210
BA91.40-P-1005-01A	Bolt on rear upper belt guide fitting	Nm	30	30	30
BA91.40-P-1006-01A	Bolt on automatic rear seat belt retractor	Nm	30	30	30
