Removing and installing rear seat belt buckle - AR91.40-P-1516KA

MODEL 208.448 /444 /470 /445 /435 /447 /465

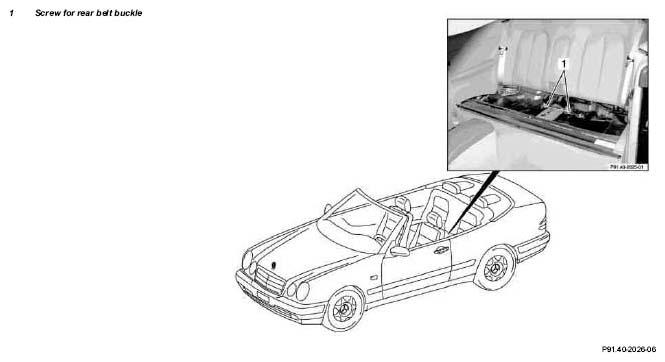

Fig 1: Identifying Rear Seat Belt Buckle Remove/Install Components

Fig. item, etc.	Work instructions
	Remove rear seat cushion	See ↓
		Removing and installing rear seat and rear seat backrest	AR91.12-P-1700KA
1	Unscrew mounting screw from belt buckle		*BA91.40-P-1007-01A

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 202, 208.3	Model 208.4
BA91.40-P-1007-01A	Screw at rear seat belt buckle	Nm	30	30
