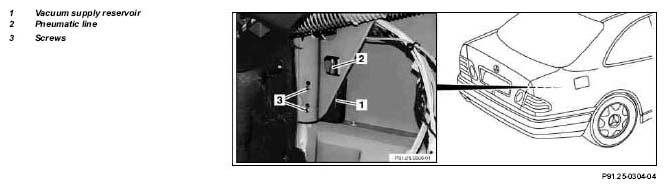

Removing and installing pressure supply reservoir for multicontour backrest - AR91.25-P-1650K
MODEL 208 with CODE (404a) Left multi-contour seat with CODE (405a) Right multi-contour seat
| Removal, installation | |||
| 1 | Remove pneumatic system equipment control module | AR80.20-P-2700K | |
| 2 | Loosen screws (3) | ||
| 3 | Remove vacuum supply reservoir (1) upward | ||
| 4 | Pry off pneumatic line (2) with open end wrench (7mm) | ||
| 5 | Reinstall in opposite order |
