Removing and installing passenger airbag unit - AR91.60-P-0680K

MODEL 208

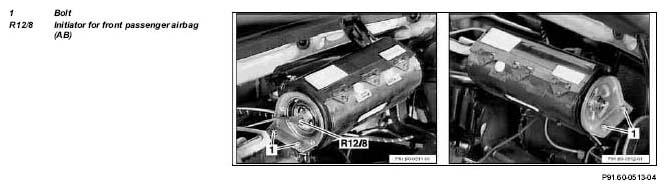

Fig 1: Identifying Passenger Airbag Unit Remove/Install Components

	Remove/install
	Risk of injury  when carrying out test or repair work on airbag or emergency tensioning retractor units	Store airbag unit with expulsion area on top, do not subject to temperatures above 100°C. Interrupt power supply when working on such units.	AS91.00-Z-0001-01A
	Important instructions for performing repair, body work and welding on vehicles with airbags and emergency tensioning retractor units	Models 129 as of 1.7.93, 163, 168, 170, 202 as of 1.7.93, 208, 210, 463, 638, 901, 902, 903, 904	AH91.00-P-0002-01B
	Legal regulations concerning the handling and storage of airbag and emergency tensioning retractors	Models 124, 129, 140, 163, 168, 170, 202, 208, 210, 314, 316, 318, 463, 638, 901, 902, 903, 904, 950, 952, 953, 954	AH91.00-P-0004-01A
	Notes on disposal of airbag and emergency tensioning retractors	All models	OS91.00-P-0001-01A
1	Disconnect ground cable of battery		AR54.10-P-0003A
2	Remove instrument panel		AR68.10-P-1000K
3	Disconnect connector from the initiator (R12/8) at the inflator	Installation:  Connector must audibly latch into position
4	Unscrew nut (2) for front passenger airbag unit
5	Remove front passenger airbag unit
6	Make airbag units unusable		AR91.60-P-0611A
7	Install in the reverse order
8	Carry out diagnosis.
			AD91.60-P-6000A
