Removing and installing front seat backrest release microswitch - AR91.29-P-1900K

MODEL 208

Front seat with semi-electric seat adjustment

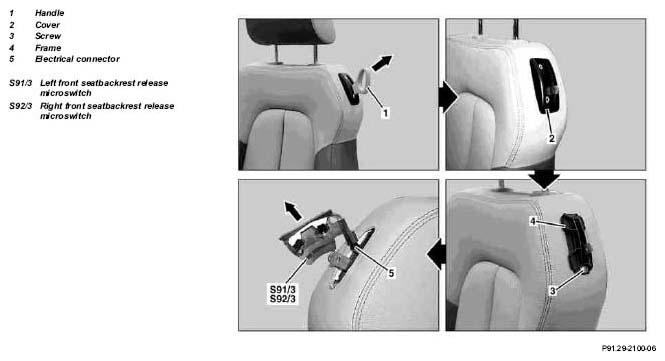

Fig 1: Identifying Front Seat Backrest Release Microswitch Remove/Install Components

	Removal, installation
1	Pull off handle (1) (arrow)		Figure
		Installation:  Replace handle (1) after removal
2	Unclip cover (2)
3	Unscrew screw (3) and remove frame (4)	Move frame (4) downward and out
4	Pull out microswitch (S91/3 or S92/3) and disconnect connector (5)	Do not damage backrest cover
		Installation:  Ensure that microswitch is seated properly
5	Install in opposite order

Fig 2: Identifying Installation Wedge (110 589 03 59 00)
