Removing and installing front head restraint motor - AR91.29-P-1432K

MODEL 208 with CODE (241) Memory circuit for electrically adjustable left front seat with CODE (242a) Memory circuit for electrically adjustable right front seat with CODE (275a) Memory package (driver's seat, steering column, rearview mirror)

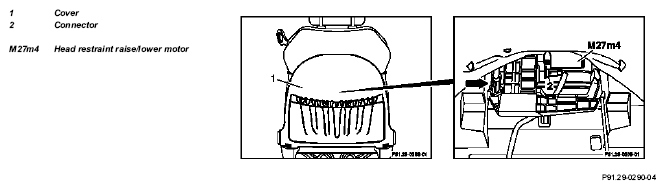

Fig 1: Identifying Front Head Restraint Motor Remove/Install Components

	Removal, installation
1	Fold front seat forward
2	Remove cover (1) on front seat	Two screws in lower area of cover
3	Remove head restraint from front seat	Installation:  Ensure that head restraint catches in head restraint holder
4	Disconnect connector (2)
5	Press head restraint raise/lower motor (M27m4) to right (arrow) and remove downward
6	Reinstall in opposite order
7	Check for proper function
