Removing and installing control module and switches for left and right front heated seats - AR91.30-P-0001K

MODEL 208 with CODE (873) Left and right front heated seats

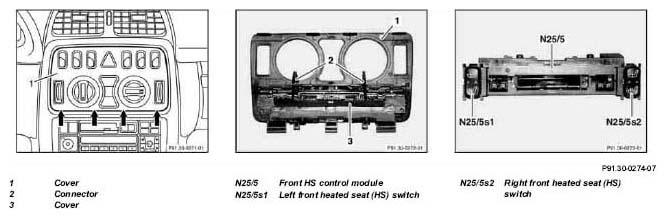

Fig 1: Identifying Control Module And Switches For Front Heated Seats Remove/Install Components

	Removal, installation
1	Unclip cover (1) (arrows), swing up and remove		Figure
2	Open connector (2) and cover (3), disconnect electrical connectors
3	Unclip front HS control module (N25/5) with left front heated seat (HS) switch (N25/5s1) and right front heated seat (HS) switch (N25/5s2) from remaining switch unit	The control module and heated seat switches are one unit and can only be replaced as a complete unit
4	Reinstall in opposite order
5	Check for proper function

Fig 2: Identifying Long Wedge (115 589 03 59 00)
