Removing and installing airbag/emergency tensioning retractor control module - AR91.60-P-0622K

MODEL 208

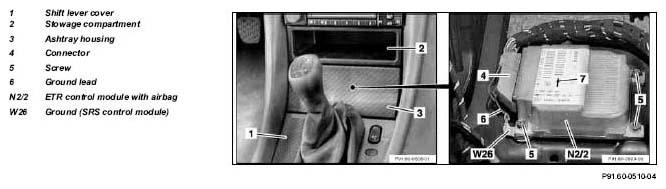

Fig 1: Identifying Airbag/Emergency Tensioning Retractor Control Module Remove/Install Components

	Removal, installation
	Important instructions for performing repair, body work and welding on vehicles with airbags and emergency tensioning retractors	Models 129 as of 1.7.93, 163, 168, 170, 202 as of 1.7.93, 208, 210, 463, 638, 901, 902, 903, 904	AH91.00-P-0002-01B
	The ETR control module with airbag (N2/2) must be replaced after the airbag has been tripped three times.
1	Disconnect ground lead from battery
2	Remove cover on shift lever (1)		AR68.20-P-2310K
3	Remove stowage compartment (2) from front of center console
4	Remove ashtray housing (3)		AR68.20-P-2400K
5	Disconnect connector (4) on ETR control module with airbag (N2/2)
6	Unscrew screws (5)	Installation:  Ensure that ground lead (6) is properly fastened to left rear screw - ground for SRS control module (W26)
7	Remove ETR control module with airbag (N2/2)	Installation:  The arrow (7) on the housing must point toward the front of the vehicle
8	Install in opposite order
9	Set parameters and program new ETR control module with airbag (N2/2)		AD91.60-P-2000A

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1036-13A	Handheld tester (HHT)	651 100 01 99
WH58.30-Z-1037-13A	Test cable (multiplexer)	651 100 40 99
