Remove/install seat belt with emergency tensioning retractor - AR91.40-P-0630K

MODEL 208

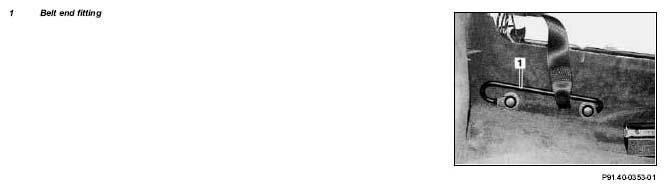

Fig 1: Identifying Seat Belt With Emergency Tensioning Retractor Remove/Install Components (1 Of 2)

Show as up to 5/98

Shown as of 6/98

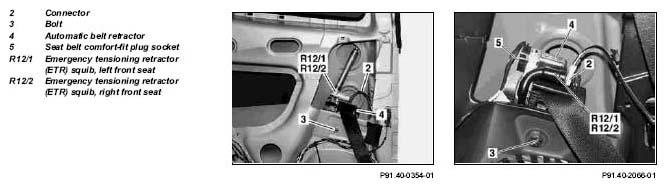

Fig 2: Identifying Seat Belt With Emergency Tensioning Retractor Remove/Install Components (2 Of 2)

	Remove/Install
	Risk of injury.  Injuries may result when performing testing or repair work on airbag or emergency tensioning retractor units.	Store airbag unit with expulsion area on top, do not subject to temperatures above 100°C. When working on these units, disconnect the power supply.	AS91.00-Z-0001-01A
	Instructions for performing repair, body work and welding on vehicles with airbags and ETR units	Models 129 as of 1.7.93, 163, 168, 170, 202 as of 1.7.93, 208, 210, 463, 638, 901, 902, 903, 904	AH91.00-P-0002-01B
	Legal regulations on handling and storing airbags and emergency tensioning retractors	Models 124, 129, 140, 163, 168, 170, 202, 208, 210, 314, 316, 318, 463, 638, 901, 902, 903, 904, 950, 952, 953, 954	AH91.00-P-0004-01A
	Evaluation of airbags and emergency tensioning retractors on accident vehicles	Models 129 as of 1.7.93, 163, 168, 170, 202 as of 1.7.93, 208, 210, 463, 638, 901, 902, 903, 904	AH91.00-P-0006-01B
	Notes on disposal of airbags and emergency tensioning retractors	All models	OS91.00-P-0001-01A
1	Withdraw ignition key
2	Remove rear passenger compartment side trim panel		AR68.30-P-4780K
3	Remove belt end fitting (1)		*BA91.40-P-1001-01A
4	Unplug plug from emergency tensioning retractor squib (R12/1, R12/2)
5.1	Disconnect seat belt comfort-fit plug socket (5)	as of 6/98
	Risk of injury.  Injury may result when the tension in the spring in the automatic belt retractor is released.	Never disassemble automatic belt retractors.	AS91.00-Z-0002-01A
6	Unscrew screw (3) and remove automatic belt retractor (4)	Installation:  Observe various versions (left/right) of emergency tensioning retractor and proper seating in catch. Never use oil or grease to eliminate noises. The warranty claim for automatic belt reels is voided if they are opened!	*BA91.40-P-1004-01A
7	Make ETR units unusable		AR91.40-P-0611A
8	Install in the reverse order
9	Read out and erase SRS system fault memory

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 202, 208.3	Model 208.4
BA91.40-P-1001-01A	Belt end fitting screw	NM	35	35
BA91.40-P-1004-01A	Screw on front automatic belt reel	NM	35	35
