Air conditioning system - check refrigerant level - AP83.30-P-8312DA

MODEL 124 with CODE (580) Air conditioning or Tempmatic for USA

MODEL 124 with CODE (581) Air conditioning (Automatic)

MODEL 129 with CODE (580) Air conditioning or Tempmatic for USA

MODEL 129 up to 31.5.96 with CODE (581) Air conditioning (Automatic)

MODEL 140 up to 31.5.95 with CODE (581) Air conditioning (Automatic) with CODE (582) Rear air conditioning

MODEL 170 with CODE (580) Air conditioning or Tempmatic for USA

MODEL 202 up to 30.9.95 with CODE (581) Air conditioning (Automatic)

MODEL 202 with CODE (580) Air conditioning or Tempmatic for USA

MODEL 215 with CODE (580) Air conditioning or Tempmatic for USA

MODEL 220 with CODE (580) Air conditioning or Tempmatic for USA

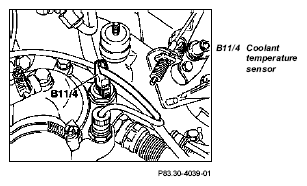

Models 140.03,202.028

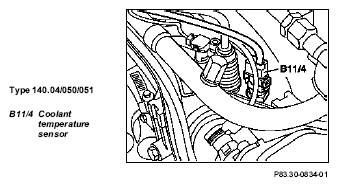

Type 140.04/050/051

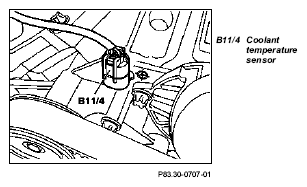

Engine 112

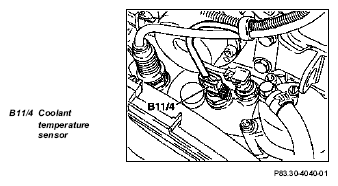

Engine 104

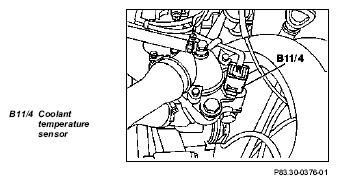

Type 140.056/057

	Check

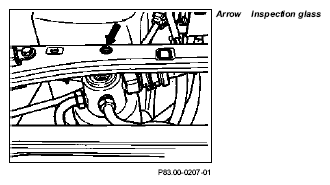

1	Clean inspection glass (arrow) on receiver/drier
2	Unplug connector at the coolant temperature sensor (B11/4) and bridge
	Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns when working in engine during starting procedure	Secure vehicle to prevent it from moving. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts.	AS00.00-Z-0005-01A
3	Start engine and allow to idle
4	Switch on air conditioning or automatic air conditioning and set to defrost or air dehumidification
5	Remove bridge at the connector for coolant temperature sensor (B11/4) and simultaneously observe inspection glass (arrow) on the fluid reservoir	The refrigerant must rise shortly after switching on the electromagnetic clutch and then flow free of bubbles (refrigerant no longer visible). Even if the correct quantity is filled, foam or a few bubbles may be present at ambient temperatures above 35°C. If refrigerant is lost or a leak is suspected in the system: ↓
		Fill or refill air conditioning system again	*BF83.00-P-1001-01A
6	Connect connector to coolant temperature sensor (B11/4)

Number	Designation			Model 124	Model 129	Model 202 up to vehicle ident. end no. 1A 168 524
BF83.00-P-1001-01A	Capacity air conditioning system/automatic air conditioning	Refrigerant R12	g	1100	1100	-
		Refrigerant R134 a	g	950	950	950
		Specifications for Operating Fluids	Sheet	BB00.40-P-0361-00A	BB00.40-P-0361-00A	BB00.40-P-0361-00A

Number	Designation			Model 202 up to vehicle ident. end no. 1F 164 269	Model 202 as of vehicle ident. end no. 1A 168 525	Model 202 as of vehicle ident. end no. 1F 164 270
BF83.00-P-1001-01A	Capacity air conditioning system/automatic air conditioning	Refrigerant R12	g	-	-	-
		Refrigerant R134 a	g	950	850	850
		Specifications for Operating Fluids	Sheet	BB00.40-P-0361-00A	BB00.40-P-0361-00A	BB00.40-P-0361-00A

Number	Designation			Model 140 without rear air conditioning, code 582 up to veh. ident. no. 1A 128 373	Model 140 with rear air conditioning, code 582 up to veh. ident. no. 1A 128 373
BF83.00-P-1001-01A	Capacity air conditioning system/automatic air conditioning	Refrigerant R12	g	1300	1500
		Refrigerant R134 a	g	1200	1400
		Specifications for Operating Fluids	Sheet	BB00.40-P-0361-00A	BB00.40-P-0361-00A

Number	Designation			Model 140 without rear air conditioning, code 582 as of veh. ident. no. 1A 128 374	Model 140 with rear air conditioning system code 582 as of vehicle ident. end no. 1A 128 374
BF83.00-P-1001-01A	Capacity air conditioning system/automatic air conditioning	Refrigerant R12	g	1300	1500
		Refrigerant R134 a	g	1150	1250
		Specifications for Operating Fluids	Sheet	BB00.40-P-0361-00A	BB00.40-P-0361-00A

Number	Designation			Model 170	Model 215
BF83.00-P-1001-01A	Capacity air conditioning system/Rautomatic air conditioning	Refrigerant R12	g	-	-
		Refrigerant R134 a	g	850	950
		Specifications for Operating Fluids	Sheet	BB00.40-P-0361-00A	BB00.40-P-0361-00A

Number	Designation			Model 220 without rear air conditioning	Model 220 with rear air conditioning
BF83.00-P-1001-01A	Capacity air conditioning system/automatic air conditioning	Refrigerant R12	g	-	-
		Refrigerant R134 a	g	950	1050
		Specifications for Operating Fluids	Sheet	BB00.40-P-0361-00A	BB00.40-P-0361-00A
