Removing and installing regulator of generator - AR15.40-P-5760EA

ENGINES 104.941, 111.920 /921 /941 /944 /945 /961 /974 /975, 112.910 /920, 601.913, 604.910 /915, 605.910 /960, 611.960 in MODEL 202

ENGINES 111.944 /945 /975, 112.940, 113.943 in MODEL 208

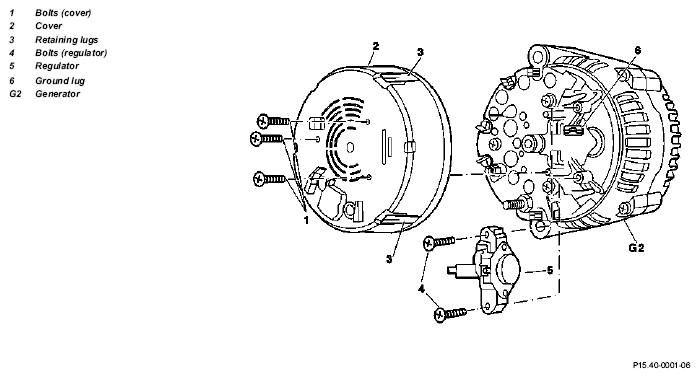

Fig 1: Identifying Regulator Of Generator Remove/Install Components

	Removing, installing
1	Remove generator	Engine 112, Engine 113 in Model 208	AR15.40-P-5032EB
		Engines 104, 111, 601, 604, 605, 611	AR15.40-P-5032EA
2	Unscrew bolts (1)
3	Unclip cover (2) and remove	Push apart retaining lugs (3).
4	Unscrew bolts (4)
5	Remove regulator (5) from the side	Installation:  When inserting regulator (5) ensure that the ground lug (6) makes contact with the regulator.
6	Install in the reverse order
