Remove/install rear engine mount - AR22.10-P-1160V
ENGINE 112 in MODEL 210.06 /26, 208, 202, 129 with transmission 722.6
ENGINE 113 in MODEL 210.07 /27, 208, 202, 129 with transmission 722.6

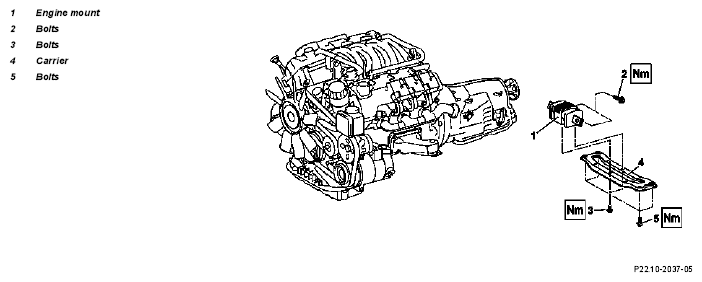

Shown on engine 112 in model 210
| Remove/install | |||
| 1 | Support transmission | ||
| 2 | Remove bolts (3) | *BA22.10-P-1002-01L | |
| 3 | Remove bolts (5) | *BA22.10-P-1003-01L | |
| 4 | Remove support (4) | ||
| 5 | Unscrew bolt (2) | *BA22.10-P-1006-01L | |
| 6 | Remove engine mount (1) | ||
| 7 | Install in the reverse order |
| Number | Designation | Engines 112.910/920, 113.944 in models 202.026/029/033/086/089/093 | Engine 112.911/914/921/941, 113.940/980 in model 210.061/062/063/065/070/074/261/262/263/265/270/274 | ||
|---|---|---|---|---|---|
| BA22.10-P-1002-01L | Bolt, rear engine mount to rear engine crossmember | Nm | 30 | 30 | |
| BA22.10-P-1003-01L | Bolt, rear engine crossmember to body | Nm | 40 | 40 | |
| BA22.10-P-1006-01L | Bolt or nut, rear engine mount to transmission | M8 | Nm | - | - |
| M10 | Nm | 40 | 40 | ||
| Number | Designation | Engine 112.923/943, 113.961 in model 129.059/064/068 | Engine 112.940, 113.943/984 in model 208.365/370/374/465/470 | ||
|---|---|---|---|---|---|
| A22.10-P-1002-01L | Bolt, rear engine mount to rear engine crossmember | Nm | 30 | 30 | |
| BA22.10-P-1003-01L | Bolt, rear engine crossmember to body | Nm | 40 | 40 | |
| BA22.10-P-1006-01L | Bolt or nut, rear engine mount to transmission | M8 | Nm | - | - |
| M10 | Nm | 40 | 40 | ||
