Remove, install left engine support - AR22.10-P-4350AV

ENGINE 112.940 in MODEL 208.365

ENGINE 112.910 in MODELS 202.026 /086

ENGINE 112.920 in MODELS 202.029 /089

ENGINE 113.943 in MODELS 208.370 /470

ENGINE 113.944 in MODELS 202.033 /093

ENGINE 113.984 in MODEL 208.374

Shown on engine 112

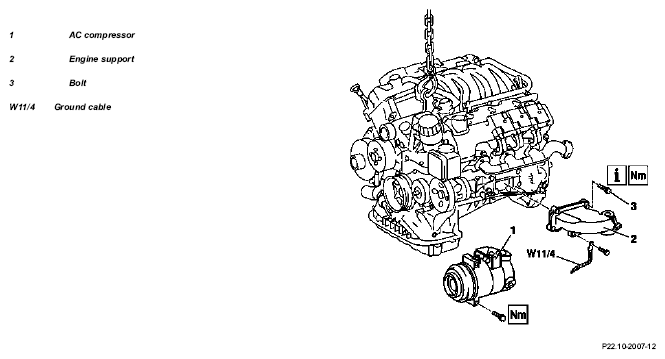

Fig 1: Identifying Left Engine Support Remove/Install Components - Shown On Engine 112

	Remove/install
1	Remove fan shroud	On models fitted with suction fan, separate plug connection of suction fan before removing fan shroud.
2	Take off poly V-belt	Model 208.370 /470 /374, 202.033 /093	AR13.22-P-1202B
		Model 208.365, 202.026 /086 /029 /089	AR13.22-P-1202BA
3	Detach lower engine compartment lining		AR61.20-P-1105AB
4.1	Remove engine mounts	All except model 208.370/374/470	AR22.10-P-1100AV
		Model 208.370/374/470	AR22.10-P-1100MV
5.1	Detach bracket of ATF line at oil pan	Only on model 208 with engine 112.
6	Unbolt AC compressor (1)	Attach AC compressor at bottom in engine compartment with lines and cables connected.
			*BA83.55-P-1001-01A
7	Unbolt ground cable (W11/4) at engine support (2)
8	Unbolt engine support (2) at crankcase	Bolts (3) must be used only once.
			*BA22.10-P-1005-01L
			Figure
9	Remove engine support (2)
10	Install in the reverse order

ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation			Engine 112.910/920, 113.944 in model 202.026/029/033/086/089/093	Engines 112.940, 113.943/984 in models 208.365/370/374/465/470
BA22.10-P-1005-01L	Bolt of engine support to crankcase	1st stage	Nm	20	20
BA22.10-P-1005-01L	Bolt of engine support to crankcase	Step 2	∠ °	90	90

REFRIGERANT COMPRESSOR

Number	Designation		Engine 112.910/911/920/921/940/941, 113.940/943/944/980/984 in model 202, 208, 210
BA83.55-P-1001-01A	Bolt of refrigerant compressor to bracket	Nm	20

Fig 2: Identifying External Torx Set (001 589 76 09 00
