Connecting and disconnecting tester at brake booster - AR43.10-P-0024-01A
With screwed connection on brake booster
| Number | Designation | Model 210 | |
|---|---|---|---|
| BA43.10-P-1001-01A | Vacuum line on brake booster | Nm | 30 |
| Number | Designation | Model 129 up to 09/89 | Model 129 as of 10/89 | Model 140 | Model 202 | |
|---|---|---|---|---|---|---|
| BA43.10-P-1001-01A | Vacuum line on brake booster | Nm | 30 | 30 | 30 | 30 |
- Unscrew or pull off vacuum line (8) at brake booster (1).

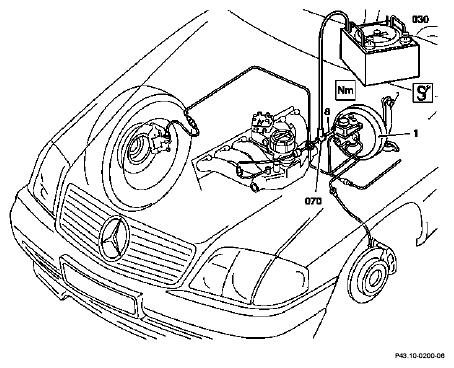

- Connect measurement connection for testing the non-return valve or brake booster (070) between brake booster (1) and vacuum line (8).
Use shop-made tool for screwed connection.
Use special tool for plug-type connection.
- Connect tester (030) to measurement connection (070).
