Removing and installing sealing rail on outside - AR72.10-P-1700K

MODEL 208

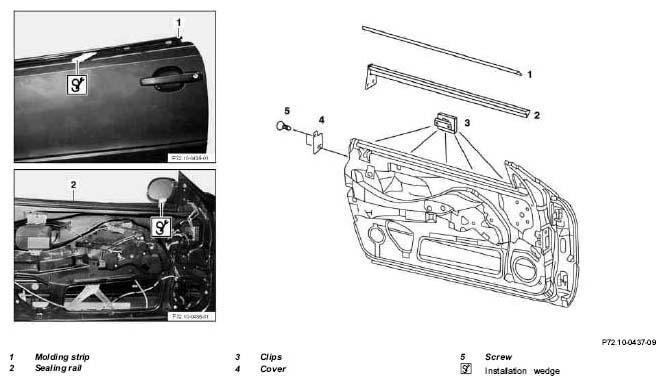

Fig 1: Identifying Outside Sealing Rail Remove/Install Components

	Removal, installation
1	Open crank window
2	Remove cover (4)
3	Unclip molding strip (1) with installation wedge	Insert installation wedge directly next to clips
			Figure
4	Unclip sealing rail (2) with installation wedge	Pull out rubber cover on rubber door seal, pull sealing rail (2) out from below outside rearview mirror
		Check clips (3), replace, if necessary	Figure
5	Reinstall in opposite order

Fig 2: Identifying Installation Wedge (110 589 03 59 00)
